IB638

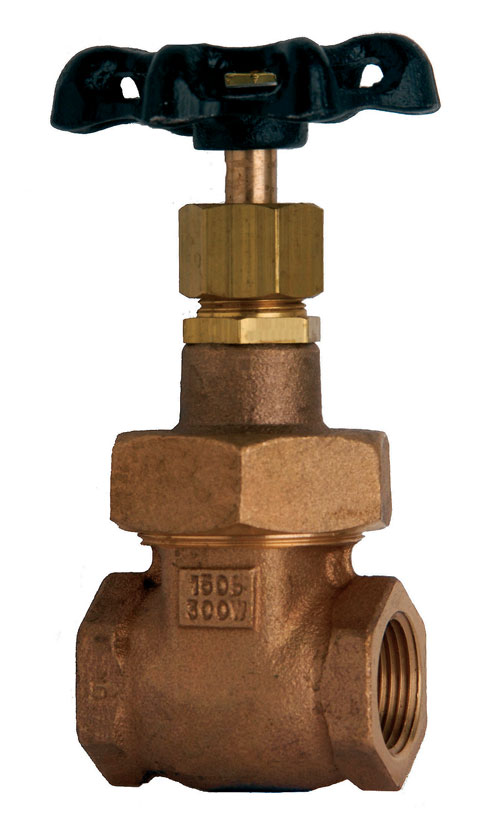

  • Bronze Gate Valve, 150 SWP – 300 WOG, Threaded Ends
  • Conforms to MSS SP-80 , Type 1
  • Not Intended for Use in Potable Water
  • Gland Packed
  • Non-Shock

Product Documents

IOMs

Spec Sheets

3D CAD Files

Description

Material

Bronze

ANSI/Pressure Rating

150 SWP – 300 WOG

End Connection

Threaded

Stem Type

Non-Rising

Bonnet Type

Union

Seat Material

Bronze

Disc Material

Solid Wedge

Product Size

1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"

Valve Type

Gate Valve

Add to quote
Category:

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
1/4"
0.93
1.75 x 0.25 x 3.69
10
10.5 x 6 x 3.25
3/8"
2
2.25 x 0.75 x 4.56
6
10.5 x 8 x 3
1/2"
1.5
2.13 x 0.5 x 4.31
10
11 x 8.25 x 3
1/2"
0.95
1.88 x 0.375 x 3.69
10
10.5 x 6 x 3.25
1"
2.4
2.88 x 1 x 5.19
6
11.5 x 9 x 3
1-1/4"
3.82
3.25 x 1.25 x 5.94
4
10.5 x 8 x 3
1-1/2"
5.26
3.25 x 1.5 x 6.38
4
10.5 x 10 x 3
2"
7.36
3.63 x 2 x 7.69
2
9.5 x 7.5 x 3
