IB656

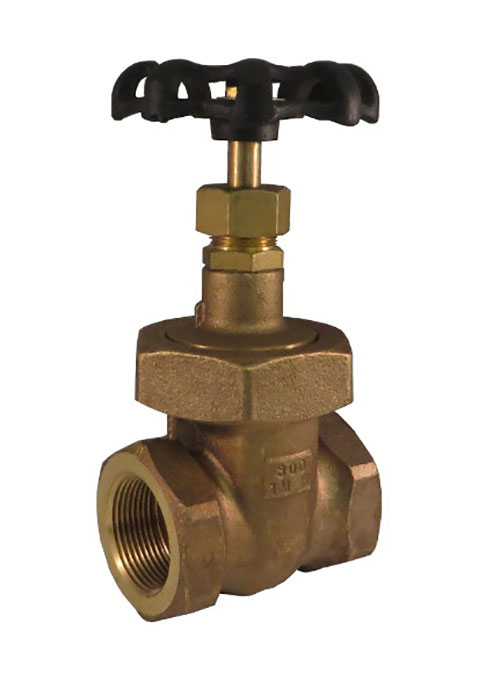

  • Bronze Gate Valve, 300 SWP – 1000 WOG, Threaded Ends
  • Conforms to MSS SP-80 , Type 1
  • Not Intended for Use in Potable Water
  • Gland Packed
  • Non-Shock

Product Documents

IOMs

Spec Sheets

3D CAD Files

Add to quote

Description

Material

Bronze

ANSI/Pressure Rating

300 SWP – 1000 WOG

End Connection

Threaded

Stem Type

Non-Rising

Bonnet Type

Union

Seat Material

Stainless Steel

Disc Material

Solid Wedge

Product Size

1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"

Valve Type

Gate Valve

Category:
Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
1/4"
0.92
1.81 x 0.25 x 4.13
10
10.5 x 6 x 3.25
3/8"
0.96
1.88 x 0.375 x 4.13
10
10.5 x 6 x 3.25
1/2"
1.5
2.25 x 0.5 x 4.31
10
11.5 x 9 x 3
3/4"
2.305
2.5 x 0.75 x 4.56
6
10.5 x 8 x 3
1"
3.12
3 x 1 x 5.19
6
14.25 x 9.5 x 2.75
1-1/4"
5.94
3.5 x 1.5 x 6.38
4
13.565 x 8.9375 x 4.8125
1-1/2"
4.56
3.38 x 1.25 x 5.94
4
10.5 x 8 x 3
2"
8.72
3.75 x 2 x 7.69
2
12 x 7 x 3.5
