IB635

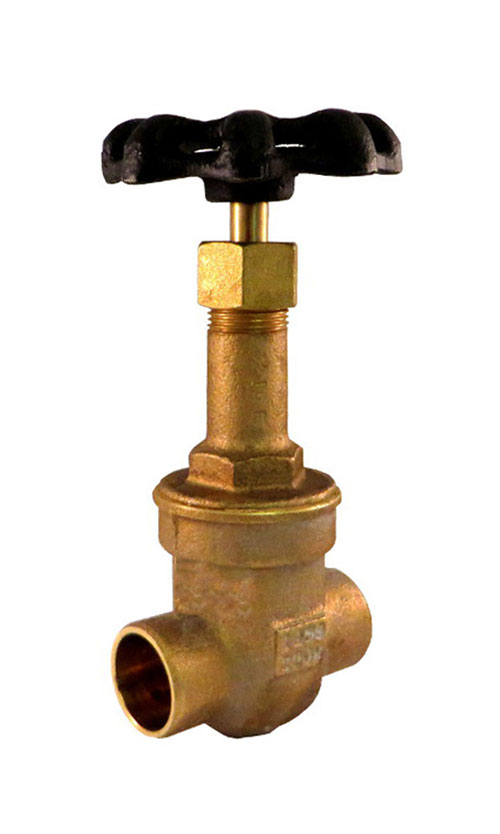

  • Bronze Gate Valve, 125 SWP – 200 WOG, Solder Ends
  • Conforms to MSS SP-80 , Type 2
  • Not Intended for Use in Potable Water
  • Gland Packed
  • Non-Shock

Product Documents

IOMs

Spec Sheets

3D CAD Files

Description

Material

Bronze

ANSI/Pressure Rating

125 SWP – 200 WOG

End Connection

Solder

Stem Type

Rising Stem

Bonnet Type

Threaded

Seat Material

Bronze

Disc Material

Solid Wedge

Product Size

3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4"

Valve Type

Gate Valve

Add to quote
Category:

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
3/8"
0.65
1.63 x 0.375 x 4.31
10
8.5 x 8.5 x 4.125
1/2"
0.72
1.88 x 0.5 x 4.31
10
8.5 x 8.5 x 4.125
3/4"
1.44
2.5 x 0.75 x 6.25
6
9.5 x 7.5 x 3
1"
1.96
3 x 1 x 7
6
17 x 13.1875 x 2.625
1-1/4"
3.14
3.25 x 1.25 x 8.63
4
1-1/2"
3.96
3.63 x 1.5 x 9.5
4
19.4375 x 9 x 3.875
2"
6.52
4.31 x 2 x 11.5
5
2 1/2"
10.02
4.81 x 2.5 x 14.31
2
13.565 x 8.9375 x 4.8125
3"
14.9
5.44 x 3 x 16.38
1
4"
26.54
7.25 x 4 x 15.5
1
