IB912

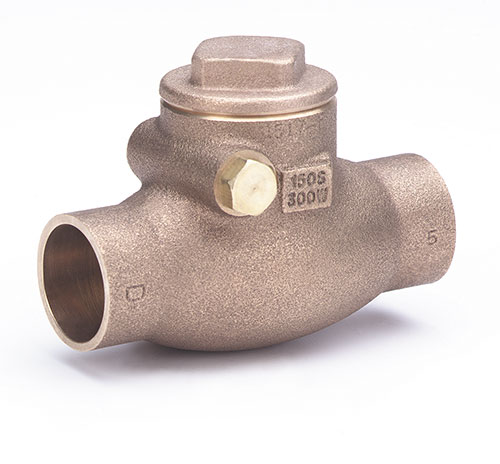

  • Bronze Check Valve, 125 SWP – 200 WOG, Solder Ends
  • Conforms to MSS SP-80 , Type3
  • Not Intended for Use in Potable Water
  • Non-Shock
  • Brass Disc 3/8″ – 1 1/2″
  • Bronze Disc 2″ – 3″

Product Documents

IOMs

Spec Sheets

3D CAD Files

Description

Valve Type

Check Valve

Material

Bronze

ANSI/Pressure Rating

125 SWP – 200 WOG

End Connection

Solder

Body Style

Horizontal Swing

Seat Material

Bronze

Disc Material

Bronze

Product Size

3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3"

Add to quote
Category:

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
1/2"
0.56
2.56 x 0.5 x 1.44
10
9.125 x 3.9375 x 2.0625
3/4"
0.8
3.31 x 0.75 x 1.69
6
9.125 x 3.9375 x 2.0625
1"
1.22
4 x 1 x 1.97
6
7 x 7 x 3
1-1/4"
1.84
4.25 x 1.25 x 2.16
4
7 x 7 x 3
1-1/2"
2.56
4.94 x 1.5 x 2.41
4
9 x 9 x 2.125
2"
4.3
6.13 x 2 x 2.81
2
9 x 6 x 3
2 1/2"
7.06
7.38 x 2.5 x 3.63
1
10.25 x 7.375 x 4.0625
3"
10.22
8.5 x 3 x 4.81
1
10.25 x 7.375 x 4.0625
