IB945

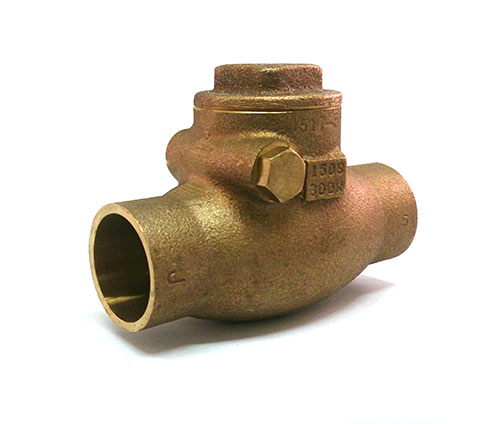

  • Bronze Check Valve, 150 SWP – 300 WOG, Solder Ends
  • Conforms to MSS SP-80 , Type 4
  • Not Intended for Use in Potable Water
  • Non-Shock

Product Documents

IOMs

Spec Sheets

3D CAD Files

Description

Valve Type

Check Valve

Material

Bronze

ANSI/Pressure Rating

150 SWP – 300 WOG

End Connection

Solder

Body Style

Horizontal Swing

Seat Material

Bronze

Disc Material

TFE

Product Size

1/2", 3/4", 1", 1-1/4", 1-1/2", 2"

Add to quote
Category:

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
1/2"
0.54
2.56 x 0.5 x 1.44
10
9.125 x 3.9375 x 2.0625
3/4"
0.82
3.31 x 0.75 x 1.69
6
9.125 x 3.9375 x 2.0625
1"
1.3
4 x 1 x 1.97
6
7 x 7 x 3
1-1/4"
1.92
4.25 x 1.25 x 2.16
4
7 x 7 x 3
1-1/2"
2.64
4.94 x 1.5 x 2.41
4
8.5 x 8.5 x 4.125
2"
4.5
6.13 x 2 x 2.81
2
9 x 6 x 3
