1550CB2

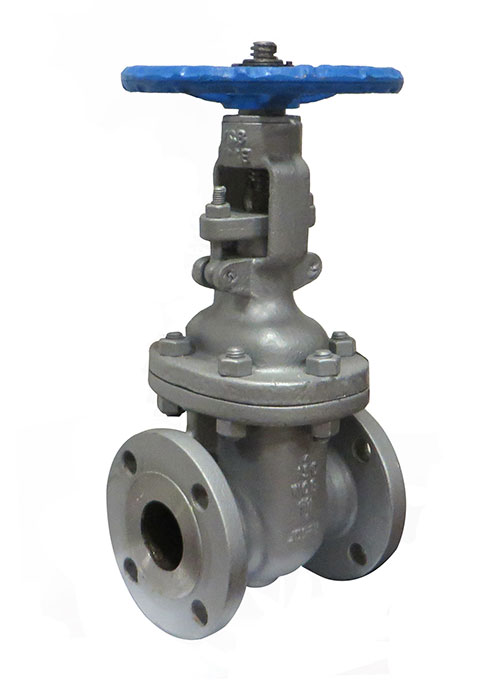

  • Cast Steel Gate Valve, 150 Class, Flanged/Raised Face Ends
  • Chainwheel Operator
  • Electric Actuator
  • Consult Factory for Optional Material and Trim

Product Documents

IOMs

Spec Sheets

3D CAD Files

Description

Body Style

Gate

Material

Cast Steel

Trim

CR-13 Stem, CR-13 Disc Face, HF(COCR) Seat Face; API Trim # 8

ANSI Class

150

End Connection

Flanged/Raised Face

Product Size

2", 2-1/2", 3", 4", 5", 6", 8", 10", 12", 14", 16", 18", 20", 24"

Add to quote
Category:

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
2"
41.8
7 x 2 x 16.29
1
2-1/2"
55
7.5 x 2.5 x 17.32
1
3"
68.2
8 x 3 x 19.68
1
4"
101.2
9 x 4 x 24.76
1
5"
136.4
10 x 5 x 28.38
1
6"
160.6
10.5 x 6 x 32.8
1
8"
244.2
11.5 x 8 x 40.74
1
10"
393.8
13 x 10 x 50.11
1
12"
576.4
14 x 12 x 58.66
1
14"
730.4
15 x 14 x 64.65
1
16"
943.8
16 x 16 x 73.23
1
18"
1150.6
17 x 18 x 81.88
1
20"
1496
18 x 20 x 94.5
1
24"
2118.6
20 x 24 x 105.3
1
30"
0
2 x 30 x 133.2
1
