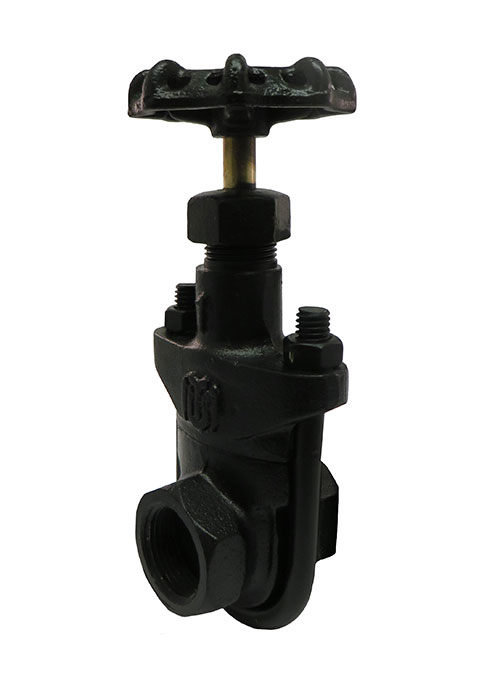

IR337-HI

  • Ductile Iron Clip Gate Valve, 150 SWP – 225 WOG, Threaded Ends
  • Gland Packed
  • Non-Shock
  • Class 150 (1/4″ – 2″)
  • Class 125 (2 1/2″ – 4″)

Product Documents

IOMs

Spec Sheets

Description

Material

Ductile Iron

ANSI/Pressure Rating

150 SWP – 225 WOG

End Connection

Threaded

Stem Type

Rising Stem

Bonnet Type

U-Bolt

Seat Material

Bronze

Product Size

1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4"

Valve Type

Gate Valve

Add to quote
Category:

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
1/4"
1.52
5 x 0.25 x 2.09
1
3/8"
1.76
5 x 0.25 x 2.09
1
1/2"
1.45
5 x 0.5 x 2.09
1
3/4"
2.33
6.21 x 0.75 x 2.35
1
1"
3.58
7.5 x 1 x 2.4
1
1-1/4"
9.8
9 x 1.25 x 2.87
1
1-1/2"
6.28
9.14 x 1.5 x 3.14
1
2"
10.316
11.57 x 2 x 3.7
1
2 1/2"
24.7
12.87 x 2.5 x 12.87
1
3"
23.286
14.67 x 3 x 4.56
1
