IB946

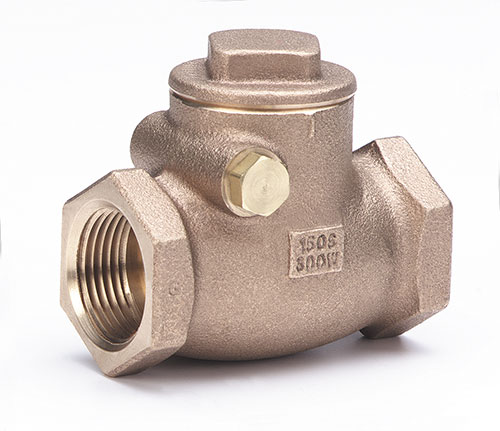

  • Bronze Check Valve, 150 SWP – 300 WOG, Threaded Ends
  • Conforms to MSS SP-80 , Type 4

Product Documents

IOMs

Spec Sheets

3D CAD Files

Description

Valve Type

Check Valve

Material

Bronze

ANSI/Pressure Rating

150 SWP – 300 WOG

End Connection

Threaded

Body Style

Horizontal Swing

Seat Material

Bronze

Disc Material

TFE

Product Size

1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"

Add to quote
Category:

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
1/4"
0.54
2.13 x 0.25 x 1.44
10
9.125 x 3.9375 x 2.0625
3/8"
0.5
2.13 x 0.375 x 1.44
10
9.125 x 3.9375 x 2.0625
1/2"
0.56
2.31 x 0.5 x 1.44
10
9.125 x 3.9375 x 2.0625
3/4"
0.86
2.63 x 0.75 x 1.69
6
9.125 x 3.9375 x 2.0625
1"
1.38
3.25 x 1 x 2
6
6 x 6 x 3.25
1-1/4"
1.74
3.56 x 1.25 x 2.13
4
6 x 6 x 3.25
1-1/2"
2.78
4 x 1.5 x 2.38
4
8.5 x 8.5 x 4.125
2"
4.52
4.75 x 2 x 2.81
2
9 x 6 x 3
