515Y

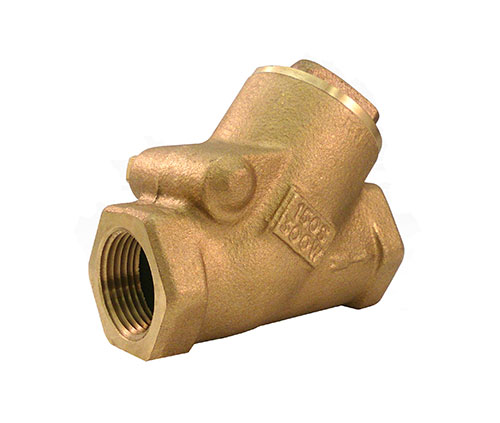

  • Bronze Check Valve, 150 SWP – 300 WOG, Threaded Ends
  • Conforms to MSS SP-80 , Type 3

Product Documents

IOMs

Spec Sheets

3D CAD Files

Add to quote

Description

Valve Type

Check Valve
Material

Bronze
ANSI/Pressure Rating

150 SWP – 300 WOG
End Connection

Threaded
Body Style

Horizontal Swing Y/Pattern
Seat Material

Bronze
Disc Material

Bronze
Product Size

1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3"
Category:

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
1/4"
0.6
2.13 x 0.25 x 1.44
10
9.125 x 3.9375 x 2.0625
3/8"
0.56
2.13 x 0.375 x 1.44
10
9.125 x 3.9375 x 2.0625
1/2"
0.88
2.31 x 0.5 x 1.44
10
6 x 6 x 3.25
3/4"
1.3
2.63 x 0.75 x 1.69
6
6 x 6 x 3.25
1"
2.2
3.25 x 1 x 2
6
8.5 x 8.5 x 4.125
1-1/4"
3.18
3.56 x 1.25 x 2.13
4
8.5 x 8.5 x 4.125
1-1/2"
4.12
4 x 1.5 x 2.38
4
9 x 8 x 3
2"
7.32
4.75 x 2 x 2.81
2
9 x 6 x 3
2 1/2"
10.23
4 x 0 x 2.38
1
9.25 x 6.75 x 3.875
3"
15
4 x 2.25 x 2.38
1
10.25 x 7.375 x 4.0625
