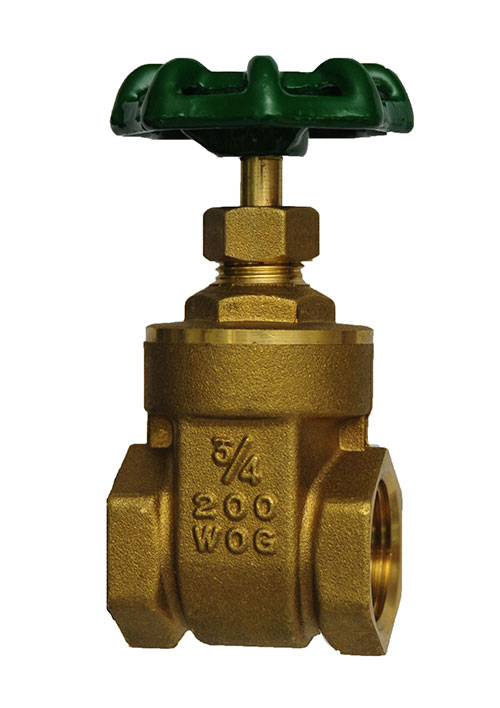

  • Brass Gate Valve 200 WOG Threaded

Product Documents

Spec Sheets

Description

Material

Brass

Product Size

1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4"

ANSI/Pressure Rating

200 WOG

End Connection

Threaded

Stem Type

Non-Rising Stem

Seat Material

Integral

Port

Integral

Disc Material

Solid Wedge

Add to quote

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
1/4"
0.64
1.125 x 0.25 x 2.8438
10
1/4"
0.64
1.125 x 0.25 x 2.8438
10
7.2441 x 8.3071 x 2.1654
3/8"
0.58
1.125 x 0.375 x 2.8438
10
7.2441 x 8.3071 x 2.1654
3/8"
0.58
1.125 x 0.375 x 2.8438
10
1/2"
0.64
1.6875 x 0.5 x 2.9063
10
8.3071 x 7.4803 x 2.1654
1/2"
0.64
1.6875 x 0.5 x 2.9063
10
1/2"
0.56
1.6875 x 0.5 x 2.9063
10
3/4"
0.7
1.8438 x 0.75 x 3.125
10
3/4"
0.86
1.8438 x 0.75 x 3.125
5
8.6614 x 4.7244 x 2.1654
3/4"
0.86
1.8438 x 0.75 x 3.125
5
1"
1.22
2.1875 x 1 x 3.9375
5
1"
1.22
2.1875 x 1 x 3.9375
5
9.8032 x 5.1181 x 2.4409
1-1/4"
1.74
2.4063 x 1.25 x 4.3438
5
1-1/4"
1.74
2.4063 x 1.25 x 4.3438
5
10.5512 x 6.4961 x 3.1496
1-1/2"
2.14
2.4375 x 1.5 x 4.9375
4
1-1/2"
2.14
2.4375 x 1.5 x 4.9375
4
10 x 6.2992 x 3.1496
2"
3.18
2.8438 x 2 x 6.0313
2
2"
3.18
2.8438 x 2 x 6.0313
2
6.1811 x 7.6772 x 3.3465
2-1/2"
6.42
3.5 x 2.5 x 7.4376
2
2-1/2"
6.42
3.5 x 2.5 x 7.4376
2
3"
8.52
3.9688 x 3 x 8.625
1
3"
8.52
3.9688 x 3 x 8.625
1
4"
8.44
4.5625 x 4 x 10
1
4"
8.44
4.5625 x 4 x 10
1
