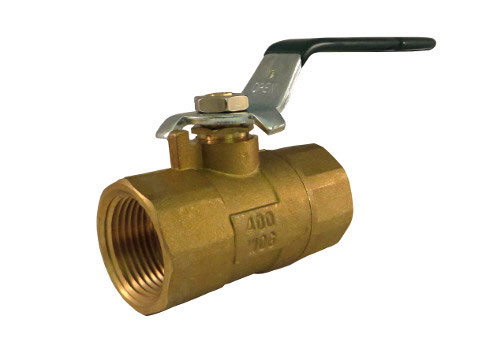

8201

  • Not Intended for Use in Potable Water
  • OPTIONS
    • Handles- Stainless Steel, Locking Lever, Oval, Tee
    • Memory Stop
    • Extension Stem

Product Documents

IOMs

Spec Sheets

Description

Material

Brass

ANSI/Pressure Rating

400 WOG

End Connection

Threaded

Body Style

Two – Piece

Seat Material

PTFE

Port

Full (1/4"-3/8"), Standard (1/2"-4")

Ball

Brass

Product Size

1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 3 1/2", 4"

Add to quote
Category:

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
1/4"
0.32
2.5 x 0.38 x 2.08
10
4.9213 x 4.5276 x 2.2441
3/8"
0.3
1.86 x 0.38 x 1.81
10
4.9213 x 4.5276 x 2.2441
1/2"
0.46
2.19 x 0.5 x 1.91
10
5.9055 x 4.9213 x 2.2441
3/4"
0.64
2.65 x 0.76 x 2.08
6
5.3543 x 4.4095 x 2.4803
1"
1.12
3.17 x 0.88 x 2.25
6
6.4961 x 5.1181 x 2.8346
1 1/4"
1.52
3.5 x 1.06 x 2.66
4
7.2835 x 4.3307 x 3.1496
1 1/2"
2.04
3.96 x 1.31 x 2.84
4
8.0709 x 4.7244 x 3.937
2"
3.16
4.3 x 1.56 x 3
2
8.5827 x 4.5276 x 2.874
2 1/2"
6.82
5.5 x 2.5 x 3.66
1
10.8268 x 5.5118 x 3.5433
3"
9.3
6.22 x 3.02 x 4.02
1
11.2205 x 6.4961 x 4.3307
4"
13.92
7.31 x 3.45 x 4.33
1
11.9291 x 7.2835 x 5
