943

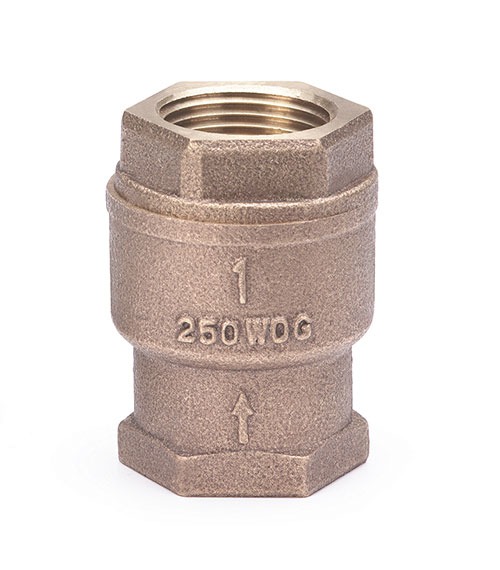

  • Bronze Check Valve 250 WOG Threaded
  • Silent Closing

Product Documents

Spec Sheets

Description

Material

Bronze
Product Size

3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"
ANSI/Pressure Rating

250 WOG
End Connection

Threaded
Body Style

Spring Loaded Lift
Seat Material

Bronze
Port

Bronze
Disc Material

Buna
Add to quote
Categories: ,

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
3/8"
0.34
1.9688 x 0.375 x 1.875
6
3/8"
0.34
1.9688 x 0.375 x 1.875
6
1/2"
0.4
2.0938 x 0.5 x 1.2188
30
1/2"
0.4
2.0938 x 0.5 x 1.2188
30
3/4"
0.6
2.3125 x 0.75 x 1.5
6
3/4"
0.6
2.3125 x 0.75 x 1.5
6
1"
0.92
2.6563 x 1 x 1.9063
4
1"
0.92
2.6563 x 1 x 1.9063
4
1-1/4"
1.36
3.0938 x 1.25 x 2.1563
4
1-1/4"
1.36
3.0938 x 1.25 x 2.1563
4
1-1/2"
2.02
3.3125 x 1.5 x 2.5938
4
1-1/2"
2.02
3.3125 x 1.5 x 2.5938
4
2"
3.16
3.7813 x 2 x 3.125
3
2"
3.16
3.7813 x 2 x 3.125
3
