8603

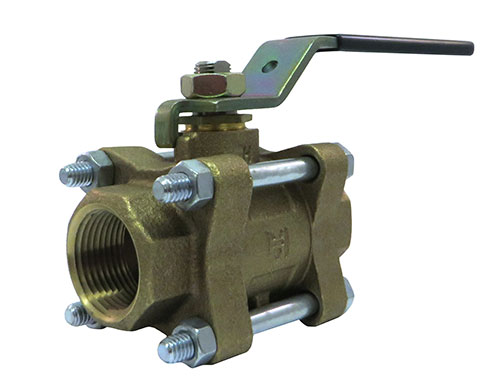

  • Three-Piece 150 SWP – 600 WOG Ball Valve, Threaded Ends
  • Handles- The Insulator/MS,Oval,Locking,Locking Oval, Stainless Steel, Tee
  • Memory Stop, Extension Stem or Extension Stem with Memory Stop, Chain Lever
  • Not Intended for Use in Potable Water
  • 3″ is Standard Port
  • Locking Handle is Standard on 2 1/2″ and 3″

Product Documents

IOMs

Spec Sheets

3D CAD Files

Add to quote

Description

Material

Bronze

ANSI/Pressure Rating

600 WOG – 150 SWP

End Connection

Threaded

Body Style

Three-Piece

Seat Material

RPTFE

Port

Full

Ball

Stainless Steel

Operator

Lever Handle

Product Size

1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3"

Category:
Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
1/4"
0.125
3.03 x 0.5 x 1.65
1
3/8"
1.105
3.03 x 0.5 x 1.65
1
1/2"
1.07
3.03 x 0.5 x 1.65
10
3/4"
2.29
3.56 x 0.75 x 2.24
6
10.25 x 7.375 x 4.0625
1"
3.21
3.82 x 1 x 2.65
5
1-1/4"
5.29
4.86 x 1.25 x 2.86
1
1-1/2"
6.765
5.06 x 1 x 3.03
1
2"
11.03
6.1 x 2 x 3.58
1

You may also be interested in these UltraPure® "Low-Lead" or UltraPress® valves
