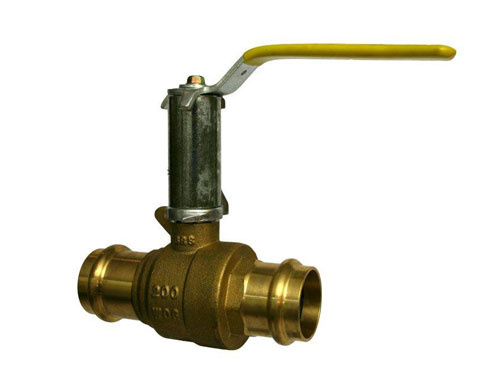

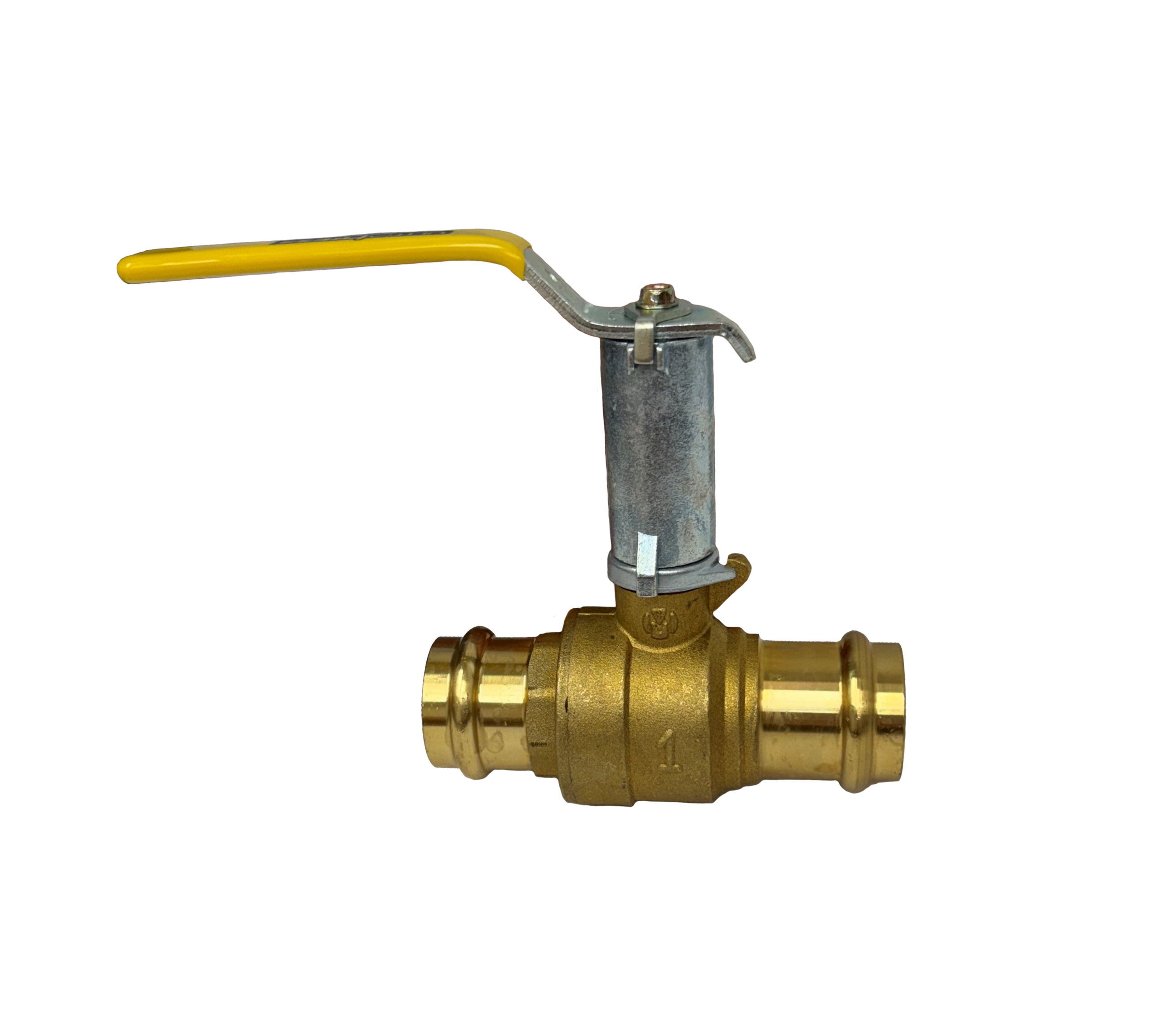

BA-481B

  • Two-Piece Brass Ball Valve, 200 psi @ 250 Degrees F, Press x Press Ends
  • Not Intended for Use in Potable Water

Product Documents

IOMs

Spec Sheets

3D CAD Files

Product Videos

Add to quote

Description

Material

Brass
ANSI/Pressure Rating

200 psi @ 250 Degrees F
End Connection

Press X Press
Body Style

Two – Piece
Seat Material

RPTFE
Port

Full
Ball

Chrome Plated
Operator

Extension Stem
Product Size

1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3"
Categories: , ,

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
1/2"
0.56
4.75 x 4 x 1
6
6.6929 x 6.2205 x 2.4409
3/4"
0.98
6 x 3 x 3.75
4
7.4409 x 6.4173 x 2.7559
1"
1.34
6.75 x 5.25 x 1.75
6
8.8583 x 6.378 x 4.5276
1 1/4"
1.92
7.75 x 5.75 x 2.5
4
10.9055 x 6.1024 x 4.0158
1 1/2"
2.82
8.25 x 6.25 x 2.75
4
13.1102 x 6.8504 x 4.1339
2"
5.28
10.75 x 7.5 x 3.5
2
15.2756 x 7.5591 x 3.3465
2 1/2"
12.75
14 x 6.75 x 4.75
1
3"
18.45
14.5 x 7 x 5
1
16 x 8.6875 x 4.9375
