IR1138-HI

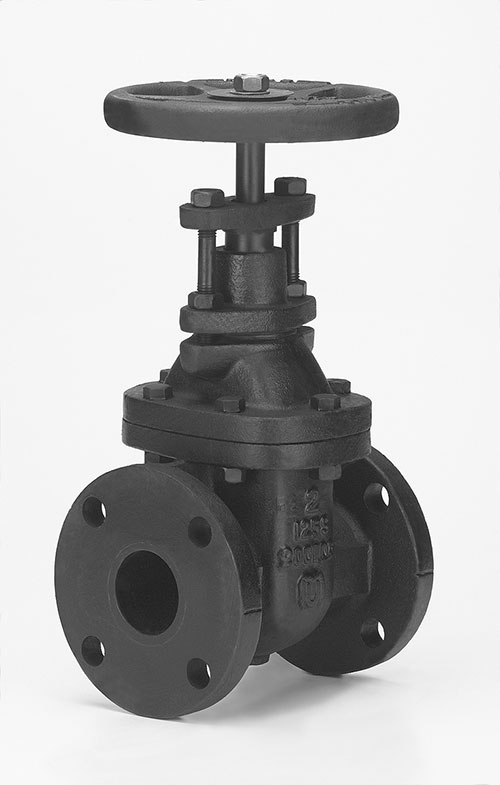

  • Cast Iron Gate Valve, 125 SWP – 200 WOG (2″ -12″) 100 SWP – 150 WOG (14″ – 24″), Flanged Ends
  • Conforms to MSS SP-70 , Type 1
  • IBBM

Product Documents

IOMs

Spec Sheets

3D CAD Files

Description

Material

Cast Iron
ANSI/Pressure Rating

125 SWP – 200 WOG
End Connection

Flanged
Stem Type

Non-Rising
Bonnet Type

Bolted
Seat Material

Bronze
Product Size

2", 2-1/2", 3", 4", 5", 6", 8", 10", 12", 14", 16", 18", 20", 24"
Valve Type

Gate Valve
Disc Material

Solid Wedge
Add to quote
Category:

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
2"
36
7 x 2 x 12
1
2-1/2"
47.68
7.5 x 2.5 x 13.25
1
3"
53
8 x 3 x 15
1
4"
100
9 x 4 x 17.75
1
5"
139
10 x 5 x 20.13
1
6"
172
10.5 x 6 x 23.13
1
8"
301
11.5 x 8 x 27.75
1
10"
458
13 x 10 x 32.31
1
12"
634
14 x 12 x 37.38
1
