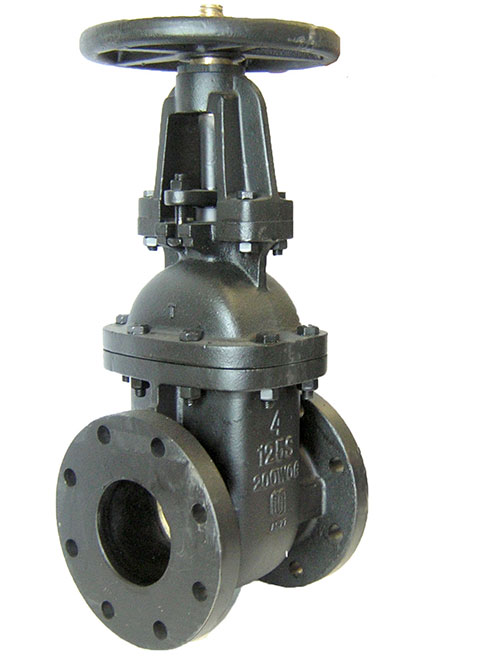

IR1140-HI
- Cast Iron Gate Valve, 125 SWP – 200 WOG, Flanged Ends
- Conforms to MSS SP-70 ,Type 1
Description
| Material | Cast Iron |
|---|---|
| ANSI/Pressure Rating | 125 SWP – 200 WOG |
| End Connection | Flanged |
| Stem Type | OS&Y |
| Bonnet Type | Bolted |
| Seat Material | Bronze |
| Product Size | 2", 2-1/2", 3", 4", 5", 6", 8", 10", 12", 14", 16", 18", 20", 24" |
| Valve Type | Gate Valve |
| Disc Material | Solid Wedge |
Weights, Dimensions, and Box Quantity
Size
Unit Weight
Unit Dims.
LxWxH
LxWxH
Box Quantity
Box Dims.
LxWxH
LxWxH
2"
38.39
7 x 2 x 15
30
2-1/2"
51
7.5 x 2.5 x 16.88
25
3"
60
8 x 3 x 18.75
25
4"
109
9 x 4 x 22.75
16
5"
147.7
10 x 5 x 27.13
1
6"
196.2
10.5 x 6 x 30.13
1
8"
306.4
11.5 x 8 x 40.13
1
10"
474
13 x 10 x 48.25
1
12"
672.4
14 x 12 x 56.88
0
14"
939.2
15 x 14 x 62
0
16"
0
16 x 16 x 71
1
18"
1706.3
17 x 18 x 75
0
20"
2121
18 x 20 x 87
1
20"
0
18 x 20 x 87
1
24"
0
20 x 24 x 100
1
