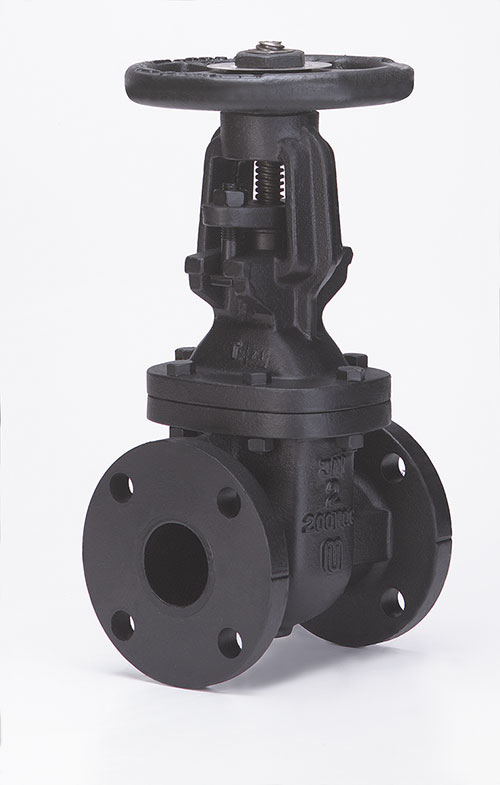

IR1913-HI

IR1913-HI

  • 3% Nickel Iron Gate Valve, 125 SWP – 200 WOG, Flanged Ends
  • Conforms to MSS SP-70 ,Type 1
  • Gland Packed
  • Non-Shock

Product Documents

IOMs

Spec Sheets

3D CAD Files

Description

Material

3% Nickel Iron
ANSI/Pressure Rating

125 SWP – 200 WOG
End Connection

Flanged
Stem Type

OS&Y
Bonnet Type

Bolted
Seat Material

Stainless Steel
Disc Material

Solid Wedge
Product Size

2", 2-1/2", 3", 4", 5", 6", 8", 10", 12"
Valve Type

Gate Valve
Add to quote
Category:

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
2"
38
7 x 2 x 17
1
2-1/2"
51.88
7.5 x 2.5 x 17.25
1
3"
61.5
8 x 3 x 19.5
1
4"
111
9 x 4 x 24
1
5"
0
10.5 x 6 x 31
1
6"
0
10.5 x 6 x 31
1
8"
0
11.5 x 8 x 40.25
1
10"
0
13 x 10 x 48.25
1
12"
0
14 x 12 x 56.88
1
