IR1937-HI

IR1937-HI

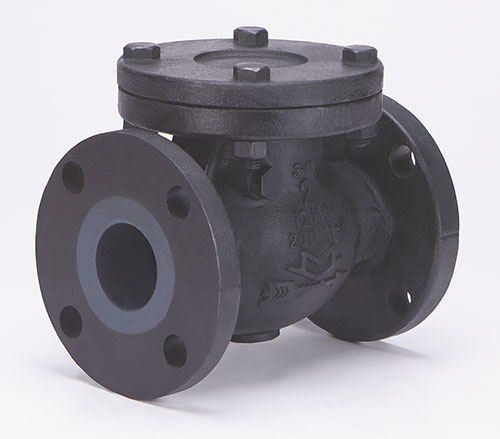

  • 3% Nickel Iron Check Valve, 125 SWP – 200 WOG, Flanged Ends
  • Conforms to MSS SP-71 , Type 1
  • Non-Shock

Product Documents

IOMs

Spec Sheets

3D CAD Files

Description

Valve Type

Check Valve
Material

3% Nickel Iron
ANSI/Pressure Rating

125 SWP – 200 WOG
End Connection

Flanged
Body Style

Swing
Seat Material

Stainless Steel
Disc Material

Solid
Product Size

2", 2-1/2", 3", 4", 5", 6", 8", 10", 12"
Add to quote
Category:

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
2"
26.92
8 x 2 x 3.94
1
2-1/2"
37.63
8.5 x 2.5 x 4.5
1
3"
47
9.5 x 3 x 5.13
1
4"
81
11.5 x 4 x 6.13
1
5"
110
14 x 6 x 8
1
6"
158
14 x 6 x 8
1
8"
267
19.5 x 8 x 9.44
1
10"
411
10 x 24.5 x 12.06
1
12"
525
27.5 x 12 x 16.13
1
