IR1124-HI

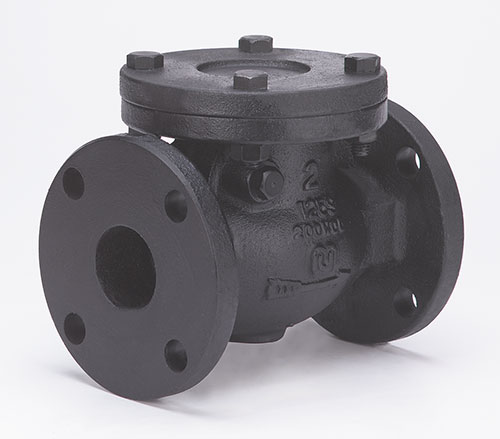

  • Cast Iron Check Valve, 125 SWP – 200 WOG, Flanged Ends
  • Conforms to MSS SP-71 , Type 1
  • Non-Shock

Product Documents

IOMs

Spec Sheets

3D CAD Files

Description

Valve Type

Check Valve

Material

Cast Iron

ANSI/Pressure Rating

125 SWP – 200 WOG

End Connection

Flanged

Body Style

Horizontal Swing

Seat Material

Bronze

Disc Material

Solid

Product Size

2", 2-1/2", 3", 4", 5", 6", 8", 10", 12", 16", 18", 20", 24"

Add to quote
Category:

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
2"
26
8 x 2 x 4.56
35
2-1/2"
39
8.5 x 2.5 x 5.38
28
3"
50
9.5 x 3 x 5.56
40
4"
82.5
11.5 x 4 x 6.69
32
5"
127
13 x 5 x 7.75
20
6"
182
14 x 6 x 9.5
15
8"
327
19.5 x 8 x 10.38
6
10"
515
24.5 x 10 x 12
4
12"
771
27.5 x 12 x 13.5
2
14"
0
31 x 14 x 15.75
1
16"
0
36 x 16 x 17.25
1
18"
0
36 x 18 x 19
1
20"
0
40 x 20 x 21.88
1
