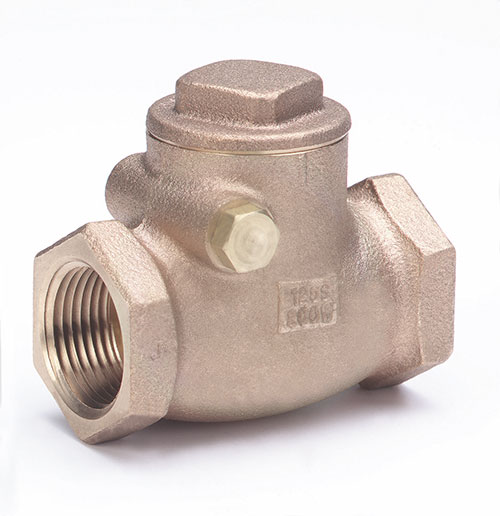

IB904

  • Bronze Check Valve, 125 SWP – 200 WOG, Threaded Ends
  • Conforms to MSS SP-80 , Type 3
  • Not Intended for Use in Potable Water
  • Non-Shock
  • Brass Disc 1/4″ – 1 1/2″
  • Bronze Disc 2″ – 3″

Product Documents

IOMs

Spec Sheets

3D CAD Files

Description

Valve Type

Check Valve

Material

Bronze

ANSI/Pressure Rating

125 SWP – 200 WOG

End Connection

Threaded

Body Style

Horizontal Swing

Seat Material

Bronze

Disc Material

Brass

Product Size

1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3"

Add to quote
Category:

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
1/4"
0.52
2.13 x 0.25 x 1.44
10
9.125 x 3.9375 x 2.0625
3/8"
0.5
2.13 x 0.375 x 1.44
10
9.125 x 3.9375 x 2.0625
1/2"
0.54
2.31 x 0.5 x 1.44
10
9.125 x 3.9375 x 2.0625
3/4"
0.84
2.63 x 0.75 x 1.69
6
9.125 x 3.9375 x 2.0625
1"
1.365
3.25 x 1 x 2
6
6 x 6 x 3.25
1-1/4"
1.82
3.56 x 1.25 x 2.13
4
6 x 6 x 3.25
1-1/2"
2.62
4 x 1.5 x 2.38
4
8.5 x 8.5 x 4.125
2"
4.34
4.75 x 2 x 2.81
2
9 x 6 x 3
2 1/2"
7.68
6 x 2.5 x 3.63
1
7 x 7 x 3
3"
11.78
6.88 x 3 x 4.19
1
10.25 x 7.375 x 4.0625
