PM01

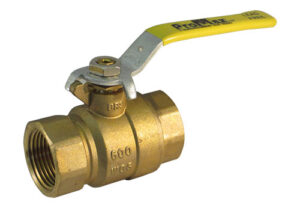

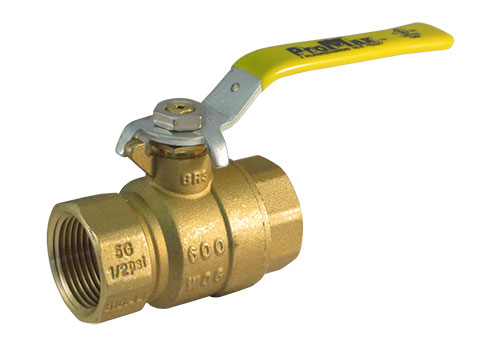

  • Two-Piece Brass Ball Valve, 600 WOG, Threaded Ends
  • Not Intended for Use in Potable Water
  • CSA/UL/FM Listed
  • 600 WOG (1/4″ – 3″)
  • 400 WOG (4″)
  • Combination of Buna “O-Ring” and TFE Packing Requires Little or No Maintenance

Product Documents

IOMs

Spec Sheets

Add to quote

Description

Material

Brass

ANSI/Pressure Rating

600 WOG

End Connection

Threaded

Body Style

Two – Piece

Seat Material

RPTFE

Port

Full

Ball

Chrome Plated

Operator

Lever Handle

Product Size

1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4"

Category:
Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
1/4"
0.3
3.14 x 1.87 x 1.42
10
5.0787 x 4.6457 x 2.1654
3/8"
0.32
3.14 x 1.87 x 1.42
10
5.0787 x 4.6457 x 2.1654
1/2"
0.46
3.14 x 2.25 x 1.46
10
6.1811 x 4.8819 x 2.4409
3/4"
0.84
4.35 x 2.62 x 1.93
6
6.1811 x 5.1969 x 2.9528
1"
1.18
4.35 x 3.06 x 2.1
6
6.1811 x 6.4567 x 3.5039
1-1/4"
1.74
5 x 3.5 x 2.33
4
7.6378 x 5.0787 x 4.2126
1-1/2"
2.5
5 x 3.75 x 2.52
4
8.3465 x 5.8661 x 4.5669
2"
4.8
6.9 x 4.38 x 2.96
2
10.315 x 5.6693 x 3.5433
2-1/2"
6.78
6.9 x 5.5 x 3.7
1
10.8268 x 5.5118 x 3.5433
3"
8.98
6.9 x 6.25 x 4
1
11.2205 x 6.4961 x 4.3307
