PM11

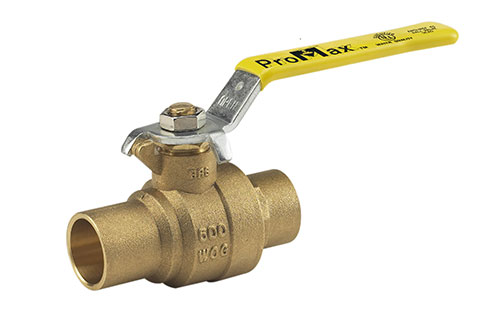

  • Two-Piece Brass Ball Valve, 600 WOG, Solder Ends
  • Handles- The Insulator/MS, Oval,Locking,Locking Oval, Stainless Steel, Tee
  • Memory Stop, Extension Stem or Extension Stem with Memory Stop, Chain Lever
  • Not Intended for Use in Potable Water
  • The Insulator TIH Handle Available- Must be Installed in the Field
  • Not Intended for Use in Potable Water
  • 600 WOG (1/4″ – 3″)
  • 400 WOG (4″)
  • Combination of Buna “O-Ring” and TFE Packing Requires Little or No Maintenance

Product Documents

IOMs

Spec Sheets

Add to quote

Description

Material

Brass

ANSI/Pressure Rating

600 WOG

End Connection

Solder

Body Style

Two – Piece

Seat Material

RPTFE

Port

Full

Ball

Chrome Plated

Operator

Lever Handle

Product Size

1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3"

Category:
Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
1/2"
0.38
3.14 x 2.28 x 1.46
10
6.1811 x 4.8819 x 2.4409
3/4"
0.78
4.35 x 3.1 x 1.93
6
6.6142 x 5.1969 x 2.9528
1"
1.1
4.35 x 3.56 x 2.1
6
7.4409 x 6.4173 x 3.3465
1-1/4"
1.56
5 x 4.13 x 2.33
24
8.4252 x 5.0787 x 4.0158
1-1/2"
2.3
5 x 4.64 x 2.52
24
9.3307 x 5.8661 x 4.0158
2"
4.5
6.9 x 5.75 x 2.96
8
11.5354 x 5.748 x 3.1496
2-1/2"
5.62
6.9 x 5.94 x 3.7
8
11.4173 x 6.1024 x 3.6614
3"
8.42
6.9 x 6.97 x 4
6
11.4173 x 6.2205 x 4.5276
