UP912

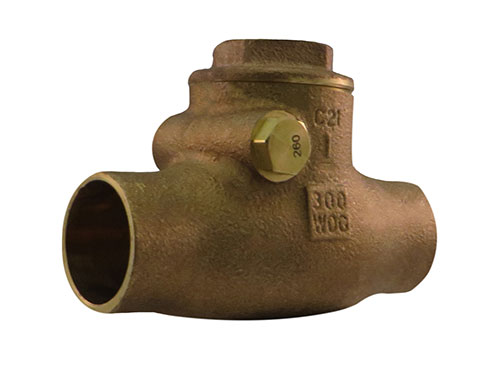

- Low Lead Bronze Check Valve, 300 WOG, Solder Ends
- Conforms to MSS SP-80 , Type 3
- Low Lead Valve For Potable Water
- Non-Shock
- 300 WOG, Non-Shock (3/8″ – 2″)
- 200 WOG (2 1/2″ – 3″)
- Brass Disc (3/8″ – 1 1/2″), Bronze Disc 2″
Product Documents
IOMs
Certifications
- IAPMO tested and certified to NSF/ANSI 61 for "lead free" compliance
- IAPMO tested and certified to NSF/ANSI 372 for "lead free" compliance
Spec Sheets
3D CAD Files
Product Videos
Description
| Valve Type | Check Valve |
|---|---|
| Material | Lead Free Bronze |
| ANSI/Pressure Rating | 300 WOG |
| End Connection | Solder |
| Body Style | Horizontal Swing |
| Seat Material | Bronze |
| Product Size | 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3" |
| Disc Material | Bronze |
