UP968

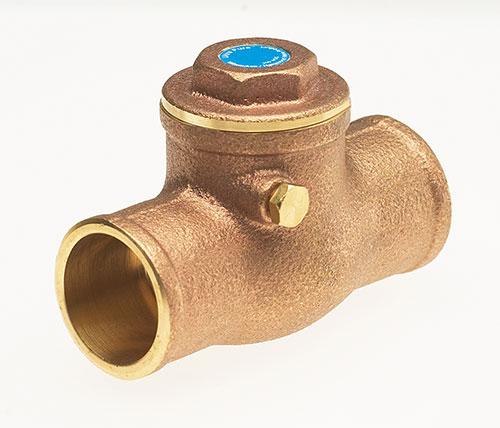

- Low Lead Brass Check Valve, 200 WOG, Solder Ends
- Low Lead Valve For Potable Water
- Non-Shock
Product Documents
IOMs
Certifications
- IAPMO tested and certified to NSF/ANSI 61 for "lead free" compliance
- IAPMO tested and certified to NSF/ANSI 372 for "lead free" compliance
Spec Sheets
Product Videos
Description
| Valve Type | Check Valve |
|---|---|
| Material | Lead Free Brass |
| ANSI/Pressure Rating | 200 WOG |
| End Connection | Solder |
| Body Style | Swing |
| Seat Material | Brass |
| Product Size | 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3" |
Weights, Dimensions, and Box Quantity
Size
Unit Weight
Unit Dims.
LxWxH
LxWxH
Box Quantity
Box Dims.
LxWxH
LxWxH
1/2"
0.38
2.18 x 0 x 1.35
10
6.1811 x 5.0787 x 2.6772
3/4"
0.5
2.85 x 0 x 1.53
10
6.9685 x 6.378 x 2.4803
1"
0.85
3.46 x 0 x 1.74
5
8.7008 x 4.0158 x 2.7559
1-1/4"
1.3
3.7 x 0 x 1.99
5
6.3386 x 5.3937 x 3.9764
1-1/2"
2
4.33 x 0 x 2.28
5
7.4016 x 6.4567 x 4.7244
2"
2.9
5.12 x 0 x 2.48
2
8.4646 x 5.8661 x 3.189
2-1/2"
6.04
6.73 x 0 x 3.11
1
9.7244 x 7.2835 x 4.7244
3"
9.48
7.48 x 0 x 3.81
1
10.9843 x 5.5118 x 4.3307
