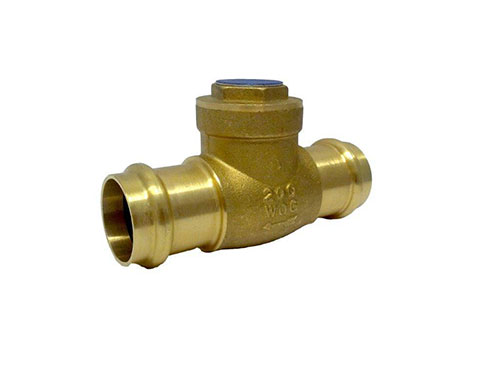

UP969

  • Low Lead Brass Check Valve, 200 psi @ 250 Degrees F, Press x Press Ends
  • Conforms to MSS SP-80 , Type 3
  • Low Lead Valve For Potable Water
  • Non-Shock

Product Documents

IOMs

Certifications

Spec Sheets

3D CAD Files

Product Videos

alterna
Add to quote

Description

Valve Type

Check Valve
Material

Lead Free Brass
ANSI/Pressure Rating

200 psi @ 250 Degrees F
End Connection

Press X Press
Body Style

Horizontal Swing
Seat Material

Brass
Product Size

1/2", 3/4", 1", 1-1/4", 1-1/2", 2"
Disc Material

Brass
Categories: ,

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
1/2"
0.46
3.35 x 0 x 1.38
10
6.9685 x 6.9685 x 1.9685
3/4"
0.68
3.74 x 0 x 1.43
6
7.874 x 4.685 x 2.126
1"
0.98
4.36 x 0 x 1.74
6
9.0551 x 5.3543 x 2.5591
1-1/4"
1.36
4.97 x 0 x 1.99
4
8.2283 x 5.2756 x 2.9921
1-1/2"
2.3
6.13 x 0 x 2.28
4
9.6457 x 6.4173 x 3.4646
2"
3.5
7.16 x 0 x 2.48
2
7.3622 x 6.1024 x 3.937
