6111-01

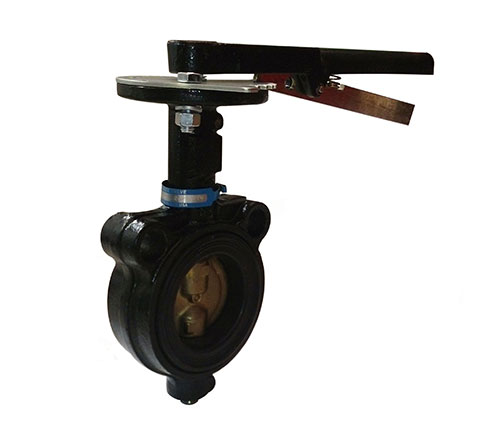

- Cast Iron Butterfly Valve, Wafer Pattern, EPDM Liner
- Bubble-Tight Shut-Off
- Non-Shock
- The Wetted Surface of this Product Contacted by Consumable Water Contains Less than One Quarter of One Percent (.25%) of Lead by Weight.
- Options can be Combined, Please Consult Factory
- Actuation,Memory Stop,Stem Extension, Chainwheel
- 2″ – 12″ rated 200 psi, 14″ – 48″ rated 150 psi
Product Documents
IOMs
Spec Sheets
3D CAD Files
Description
ANSI/Pressure Rating | 200 psi |
---|---|
Body Style | Wafer |
Operator | Lever |
Material | Cast Iron |
Disc Material | Aluminum/Bronze |
Liner Material | EPDM |
Options | None |
Product Size | 2", 2-1/2", 3", 4", 5", 6", 8", 10", 12" |
Weights, Dimensions, and Box Quantity
Size
Unit Weight
Unit Dims.
LxWxH
LxWxH
Box Quantity
Box Dims.
LxWxH
LxWxH
2"
8.64
1.69 x 4.75 x 9.69
1
11.25 x 5.875 x 4.125
2-1/2"
9.738
1.81 x 5.5 x 10.44
1
11.25 x 5.875 x 4.125
3"
10.016
1.81 x 6 x 11.13
1
11.25 x 5.875 x 4.125
4"
12.984
2.07 x 7.5 x 12.38
1
12.25 x 8.5 x 4.125
5"
15.98
2.19 x 8.5 x 13.6
1
14.5 x 10.5625 x 4
6"
20.638
2.19 x 9.5 x 14.69
1
14.5 x 10.5625 x 4
8"
33.38
2.38 x 11.75 x 16.44
1
20.5 x 13.625 x 6.375
10"
54
2.69 x 14.25 x 19.94
1
22 x 16.625 x 6.75
12"
80.54
3.06 x 17 x 22.81
1
24.625 x 19 x 6.25
